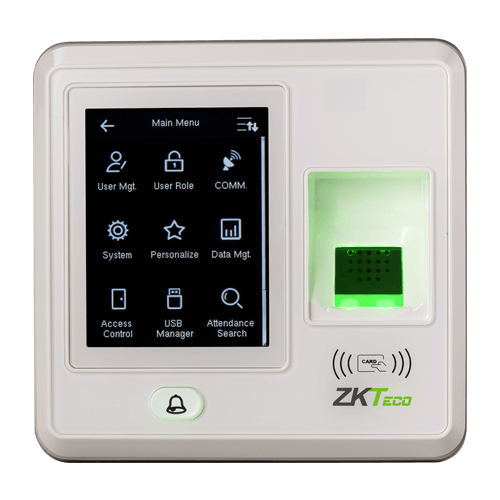

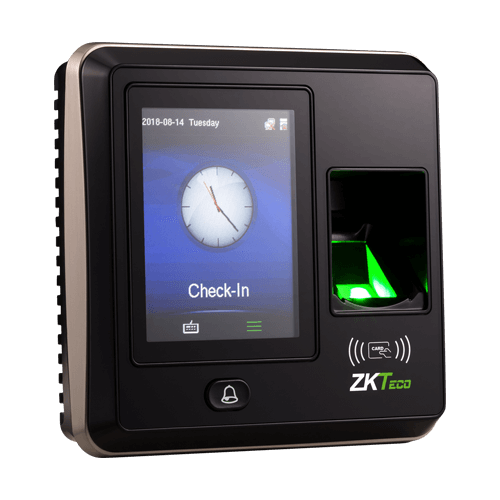

SF 300 Black and White
ZKTeco SF300 IP Based Fingerprint Access Control & Time Attendance
ZKTeco SF300 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, SF300 can connect with ZKAccess3.5 software for access control and time attendance management.
Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.
Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.
|
Model |
SF300 |
|
LCD |
2.8 inch capacitive touch screen |
|
Fingerprint Sensor |
ZK Optical Sensor (500DPI) |
|
Algorithm Version |
ZKFinger VX10.0 |
|
Communication |
TCP/IP, USB Host |
|
Fingerprint Capacity |
1,500 |
|
Card Capacity (Optional) |
5,000 (EM/Mifare) |
|
Records Capacity |
80,000 |
|
Access Control Interface |
Electric lock, Door sensor, Alarm, Exit button, Door Bell |
|
Functions |
DST, Automatic Status Switch, Record query, T9 input, 9 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) ,webserver(Optional) |
|
Wiegand Signa |
Wiegand input & output |
|
Aux. Input |
1ea for linkage function |
|
Power Supply |
DC 12V/3A |
|
Operating Temperature |
0 ~ 45°C (32°~113°F) |
|
Operating Humidity |
20 ~ 80% |
|
Dimension(L x W x H) |
105 x 105 x 34mm |
- SF300 Datasheet -Datasheet
