Our Products

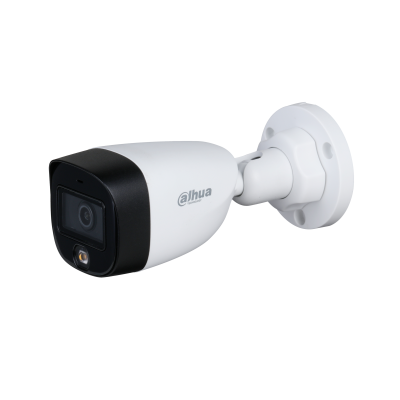

DH-HAC-HFW1209C-LED

2MP Full-color HDCVI Bullet Camera

  •  24/7 color imaging
  •  20 m illumination distance
  •  Max. 30fps@1080P
  • CVI/CVBS/AHD/TVI switchable
  • Fixed lens (2.8 mm;3.6 mm optional)
  • IP67, 12V±30% DC

Download our brochure




System Overview

Experience 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.

Warm Supplemental lights

With one warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total dark. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overex- posureing of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD men

Long Distance Transmission

HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700 m for 2MP HD video via coaxial cable, and up to 300 m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.

Multiple-formats

The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC control- ler). This feature makes the camera to be compatible with most end users’ existing HD/SD DVRs.

Functions

Full-color

The camera adopts F1.6 large aperture lens and 1/2.8" high perfor- mance sensor. With higher amount of absorbed light and advanced im- age processing algorithm, the camera can present 24/7 colored image that provides color details to accurately identify people or objects in low light conditions.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm.

*Audio input is available for some models of HDCVI cameras.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play ap- proach enables full HD video surveillance without the hassle of configur- ing a network.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged de- sign. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of-40 °C to +60 °C (-40 °F to +140 °F), the camera

is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the mostunstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
