UA 860
- PUSH: Real time HTTPS communication. Data is sent encrypted to ensure protection and security.
- Wifi connection. Easy installation without communication cables.
- Besides T&A, it includes Access Control features.

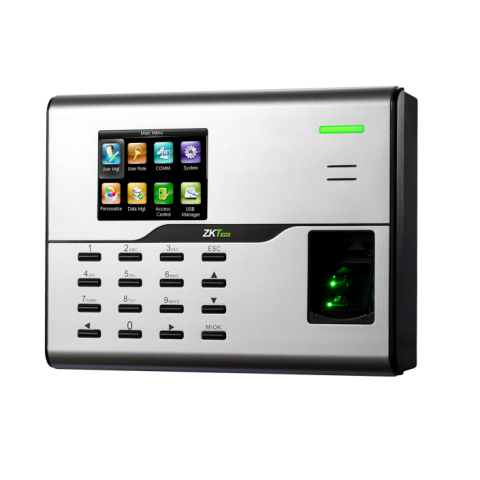

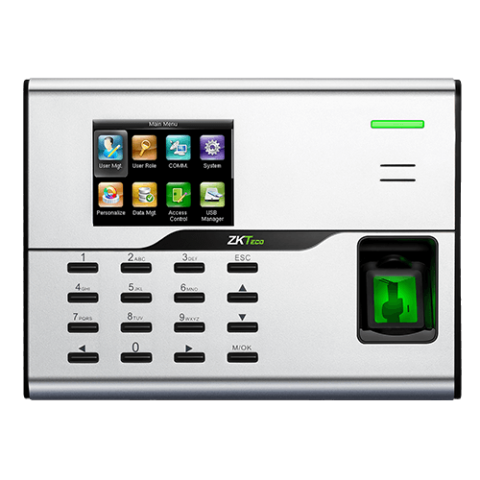

UA860 is a 2.8 inches color screen biometric terminal for Time & Attendance, and Access Control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB host port for data up/download to avoid the risk of accidental deletion. Besides, optional WDMS can achieve remote data management with our ZKTime.Net 3.0.
- Wi-Fi: WiFi module is integrated. It is working on the 2.4G radio band, and meet the IEEE 802.11b/g/n standards.
- USB: Support USB host connection to achieve data backup and management while the device is standalone.
- WDMS: Optional for devices worldwide using. Solve the device’s capacity limitation through networking via HTTP sever. Mondial devices can be connected and upload & backup data automatically. This is helpful for devices managing and monitoring.
- BioID: Using BioID Fingerprint Collector for excellent recognition rate. Dry, moist, or rough fingerprints can work well.
|
User Capacity |
3,000 |
|
Fingerprint Capacity |
1,000 |
|
ID Card Capacity |
3,000 optional |
|
Record Capacity |
50,000 |
|
Display |
2.8’ color screen |
|
Communication |
TCP/IP, WiFi, USB-host |
|
Standard Functions |
9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell |
|
Optional Functions |
ID/Mifare, WDMS, RS232 External Printer |
|
Access Control Interface |
3rd Party Electric Lock, Exit Button |
|
Software |
ZKTime Enterprise, ZKTime Small Business, BioTime 7, ZKTime.Net |
|
Power Supply |
DC 12V/1.5A |
|
Operating Temp |
0 °C - 45 °C |
|
Operating Humidity |
20%-80% |
|
Dimension |
185*137*38.2mm (LxWxT) |
