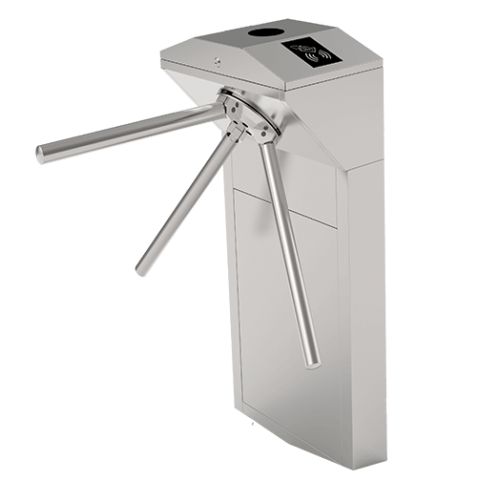

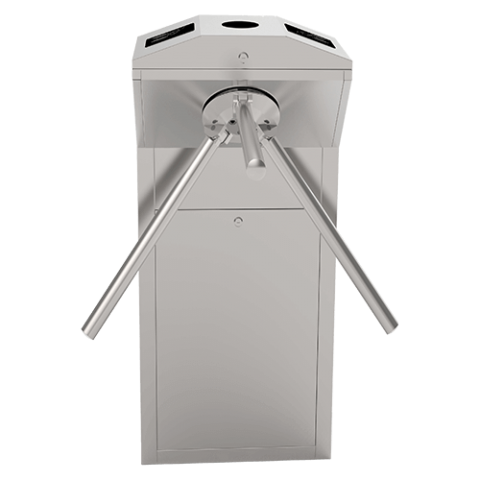

TS1000 Pro Series
- SUS304 stainless steel housing
- Bi-directional tripod turnstile with arm drop function
- LED pictograms for intuitive user experience and high throughput in both directions
- High quality at an affordable price
- Low power consumption
- Wide range of accessories
- Easy and simple installation process
- Easy to maintain and monitor
Our Pro series tripod turnstiles represent classic and safe way to protect your premises. They are widely used in various indoor environment applications. They fit perfectly as an economical option into the office buildings and other related applications. TS1000 Pro Series is a single-lane tripod turnstile series designed for smooth and silent operation and energy efficiency. It’s made of stainless steel which makes TS1000 Pro Series highly durable. TS1000 Pro Series is also surprisingly compact and designed to operate in small workspaces.
TS1000 Pro Tripod Turnstile
TS1011 Pro Tripod Turnstile (w/ controller and RFID reader)
TS1022 Pro Tripod Turnstile (w/ controller and combination fingerprint & RFID reader)
Reliability
• Alloy steel tripod hub and SUS304 stainless steel casework & tripod arms ensure long-lasting durability
• Power conservation. Electro-magnetic locks remain in “standby mode” until turnstile is activated
• Patented oil lubrication system reduces need for maintenance
• High quality electrical components
Safety Features
• Tripod-arms unlock & drop during emergencies /power loss
• All smooth finish. No exposed screws or fasteners
• Visual indicator for access granted (or denied)
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
• Secure. Supports Anti-tailgating.
Built-in Reader Integration
• TS1000 Pro Series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
• TS1000 Pro Series and associated access control readers are all factory-tested prior to shipping.
• ZKTeco provides true plug’n play turnstiles with the lowest possible total cost of ownership in the industry!
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
|---|---|
| Power consumption Starting | 68W |
| Power consumption Standby | 15W |
| Power consumption Unlock | 60W |
| Working temperature | -28 °C - 60 °C |
| Working humidity | 5%-80% |
| Working environment | Indoor/Outdoor (if sheltered) |
| Speed of throughput RFID | Maximum 30/minute |
| Speed of throughput Fingerprint | Maximum 25/minute |
| Lane width(mm) | 520 |
| Footprint(mm*mm) | 520*800 |
| Dimension(mm) | L=520, W=310, H=1010 |
| Dimension with packing(mm) | L=570, W=365, H=1080 |
| Net weight(kg) | 35 |
| Weight with packing(kg) | 36 |
| LED indicator | Y |
| Cabinet material | SUS304 Stainless Steel |
| Lid material | SUS304 Stainless Steel |
| Barrier material | SUS304 Stainless Steel |
| Barrier movement | Rotating |
| Emergency mode | Y |
| Security level | Medium |
| MCBF | 1 million |
| Options/Accessories | Counter, SUS316 Cabinet and Lid, Remote Control |
- TS1000 Pro Series Datasheet -Datasheet
- TS1000 Pro Series User manual - User manual
- TS1000 Pro Series Installation Guide - Installation guide
